Webhook Integration

Bipsync's Rules engine allows users to trigger actions when certain events occur in Bipsync. One of these actions we support is to call a webhook, which sends a custom payload to a specified URL. This payload can contain data relating to the event, such as the title and content of a note that was modified.

Payloads can be XML or JSON, and they're rendered with Mustache. Therefore by encoding data placeholders with {{}} characters, they'll be converted to the corresponding values of the related document when the webhook is invoked.

For example consider the following JSON template:

{
  "data": {
    "type":"notes",
    "attributes": {
      "description": "{{ document.note.content }}",
      "effectiveDate": "{{ document.created.sec }}",
      "title": "{{ document.title }}"
    },
    "author": {
        "data": {
          "type":"system-users",
          "id":"{{ document.user._id }}”
        }
      }
    }
  }
}

These templates allow you do detail the exact structure of the request to adapt it to your consuming web-service.

The list of available properties is long, here is an example of some typical objects in Bipsync:

Research

Property	Description	Usage
title	Note title	`{{document.title}}`
id	Note ID	`{{document._id}}`
content	The body of a note	`{{document.content}}`
user	The user that owns the note. Returns a User object.	`{{document.user}}`

Property	Description	Usage
name	Name of the category	`{{document.name}}`
id	Category ID	`{{document._id}}`
classification	Classification ID of the category	`{{document.classification}}`
ticker	Ticker for companies	`{{document.ticker}}`

Project

Property	Description	Usage
name	Name of the project	`{{document.name}}`
id	Project ID	`{{document._id}}`
stage	Stage ID of the project	`{{document.stage}}`

User

Property	Description	Usage
name	Name of the user	`{{document.name}}`
id	Project ID	`{{document._id}}`
email	Email address of the user	`{{document.email}}`

Configuration

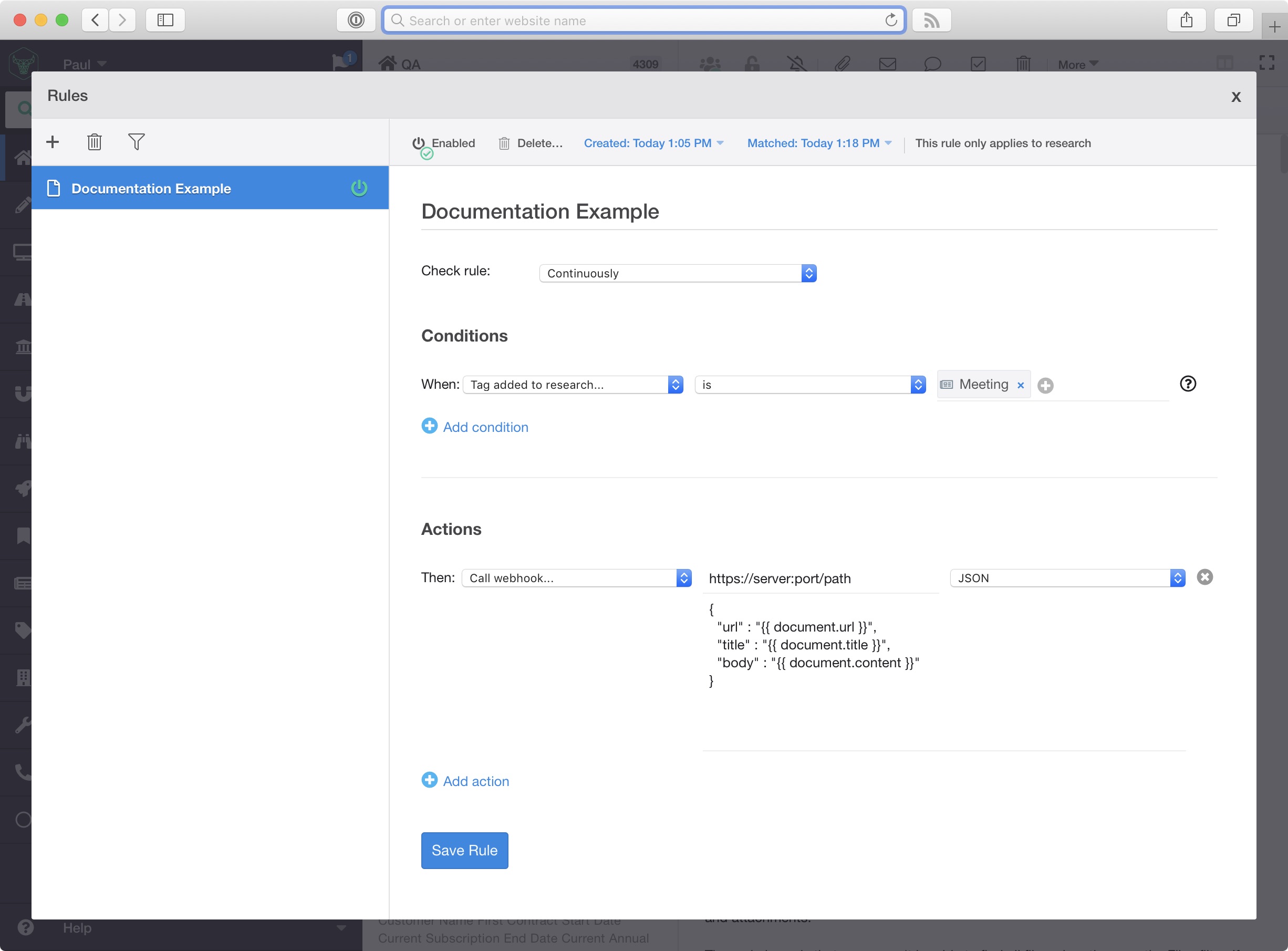

All the configuration for webhooks are contained within the Bipsync Rules interface:

Networking requirements

Full support for any HTTPS server with a valid certificate chain listening on any port.

Requests are sent almost real-time after the condition is met.

The source of the requests will be from your installation instances within the AWS EC2 cloud.
